VAN DRIVER SIDE PLYWOOD SHELVING PACKAGE
This universal combination has been designed to work on the drivers side of panel vans

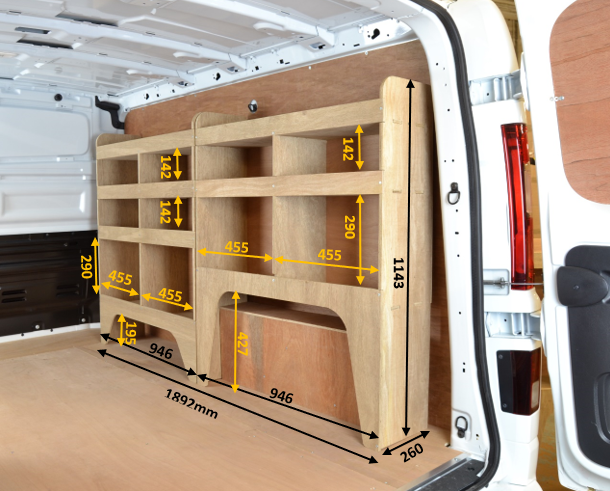

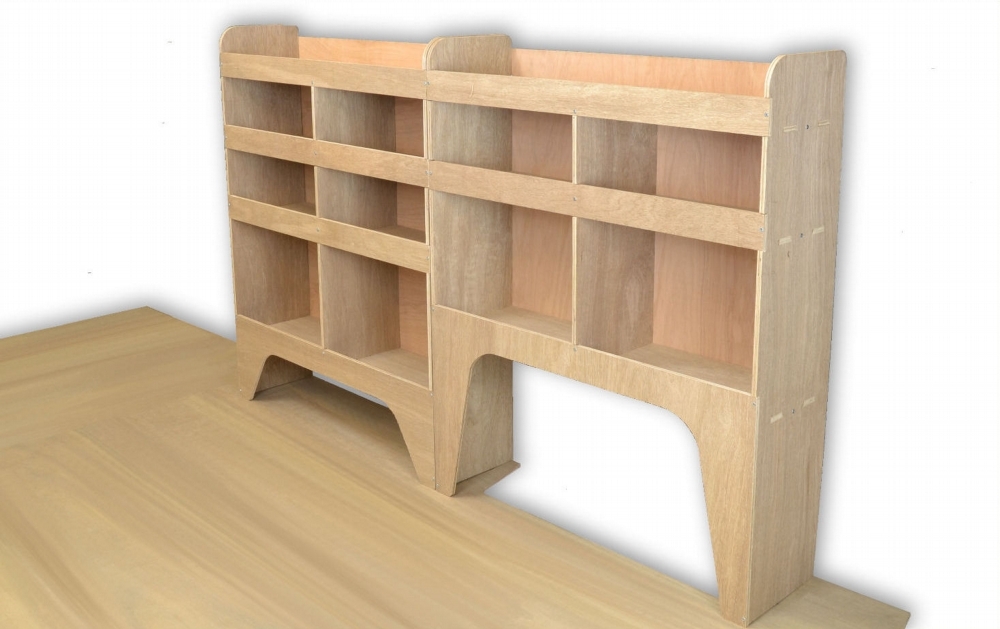

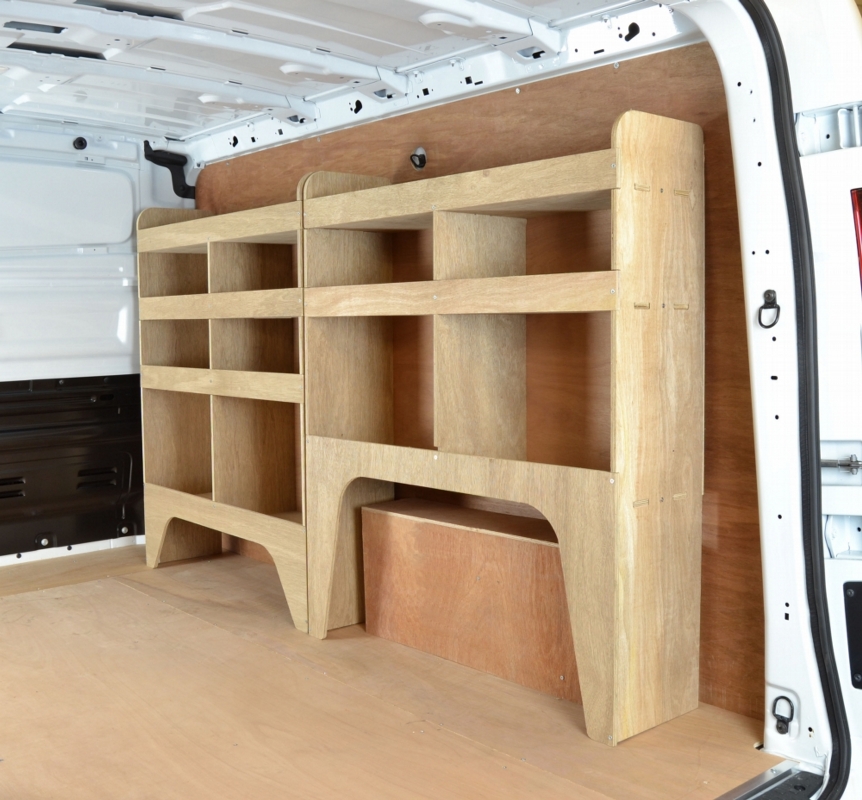

Two separate units are supplied which can be positioned along the driver side of most panel vans, the 2 units can be screwed together to form one large unit, The combined size of both the units will be overall length 1892mm long with a height of 1143mm and a depth of 272mm.
The dimensions of each unit is as follows.

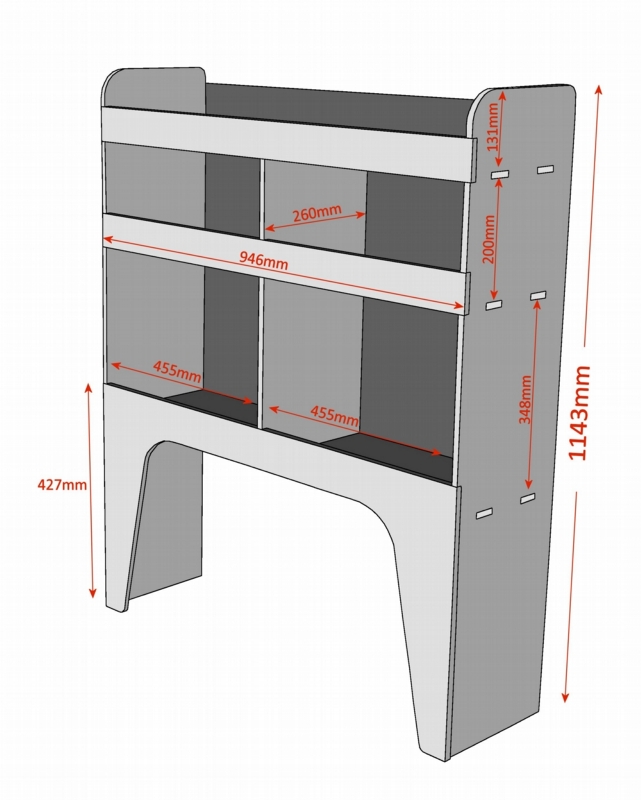

RACK WR1 - Unit has height of 1143mm x 946mm wide and depth at the base of 272mm, comprises of 3 shelves, 2 of the shelves are divided into small pigeon hole compartments. Comes with back panel supplied so will work in vans even if they haven't been ply lined. This is the unit that would normally sit over the wheel arch in you van.
Shelf sizes are as follows starting from the top:
Shelf 1 ( Top ) - 946mm wide x 131mm deep
Shelf 2 - 946mm wide x 260mm deep x 200mm high (with central divider)
Shelf 3 - 946mm wide x 260mm deep x 348mm high (with central divider)
Clearance from floor to underside of bottom shelf 427mm high

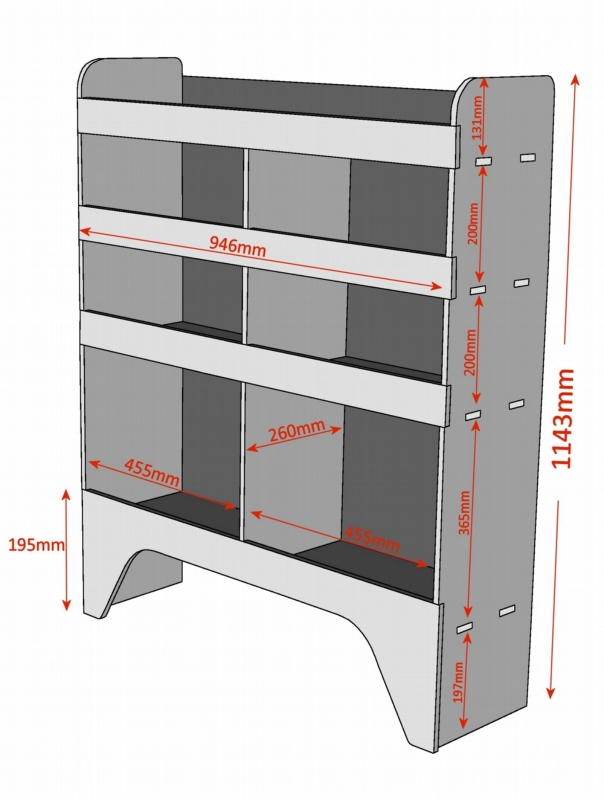

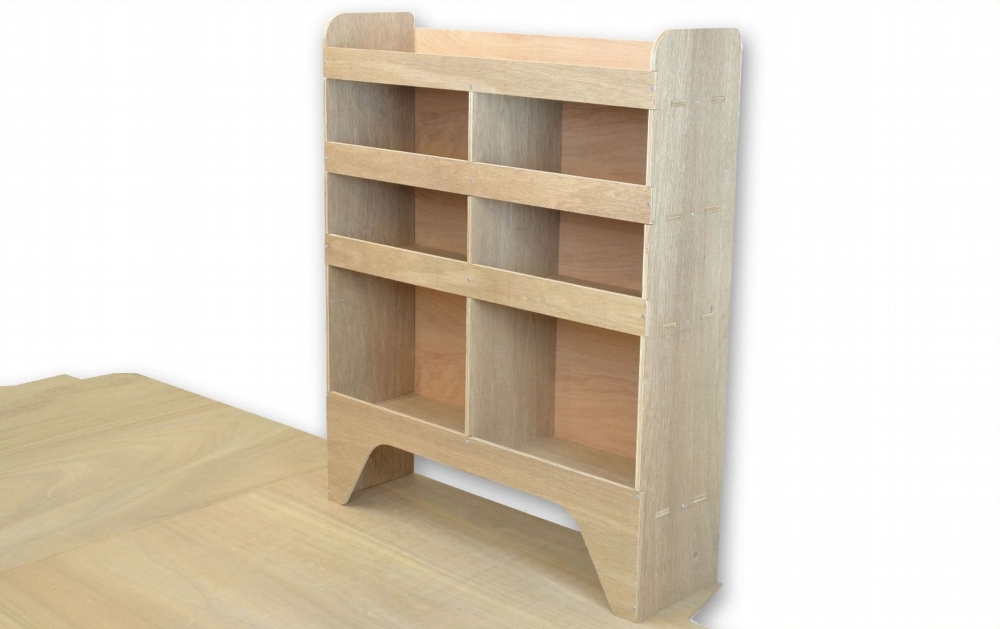

RACK WR3 - Unit has height of 1143mm x 946mm wide and depth at the base of 272mm, comprises of 4 shelves, 3 of the shelves are divided into small pigeon hole compartments. Comes with back panel supplied so will work in vans even if they haven't been plylined.
Shelf sizes are as follows starting from the top:
Shelf 1 ( Top ) - 946mm wide x 260mm deep
Shelf 2 - 946mm wide x 260mm deep x 200mm high
Shelf 3 - As per shelf 2
Shelf 4 - 946mm wide x 260mm deep x 365mm high
Clearance from floor to underside of bottom shelf 197mm high. This unit does not go over the whhel arch.
CNC cut with Interlocking shelves and mortise and tenon joints throughout for maximum strength and rigidity, constructed from 12mm ply. Retaining lip to all compartments, much less rattles than steel shelving when on the move.
These units are supplies flat packed will full assembly instructions and due to mortise and tenon joint design they only take 15 minutes to assemble. They can be assembled to fit on the drivers side of the van.
Please note timber is a natural product so the plywood colour may vary from the image, colour may vary between different boards.
