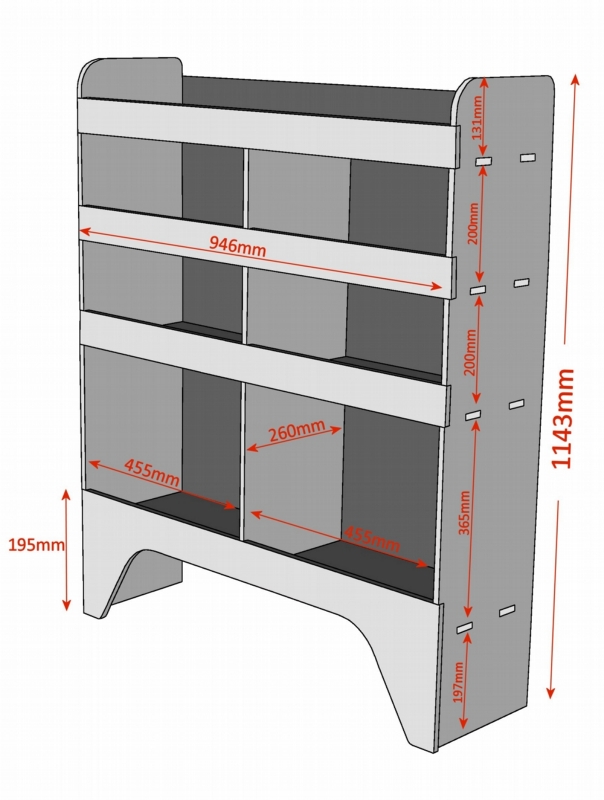

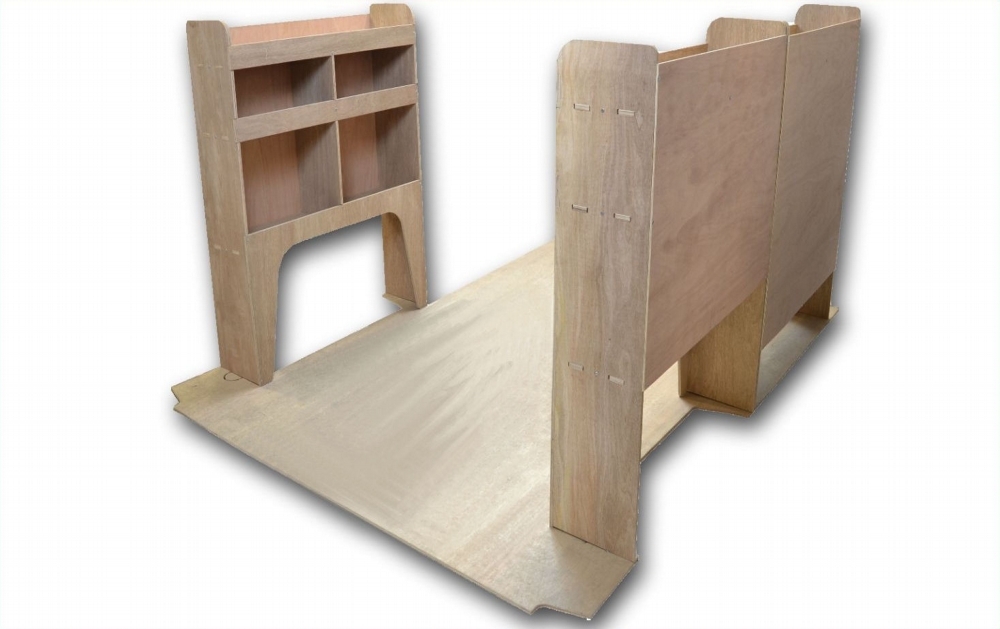

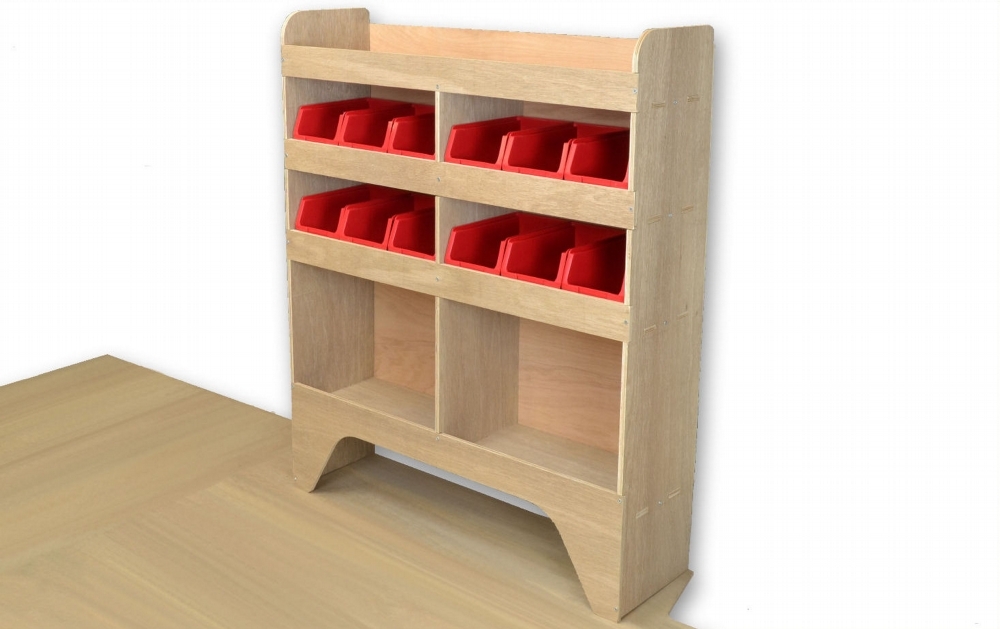

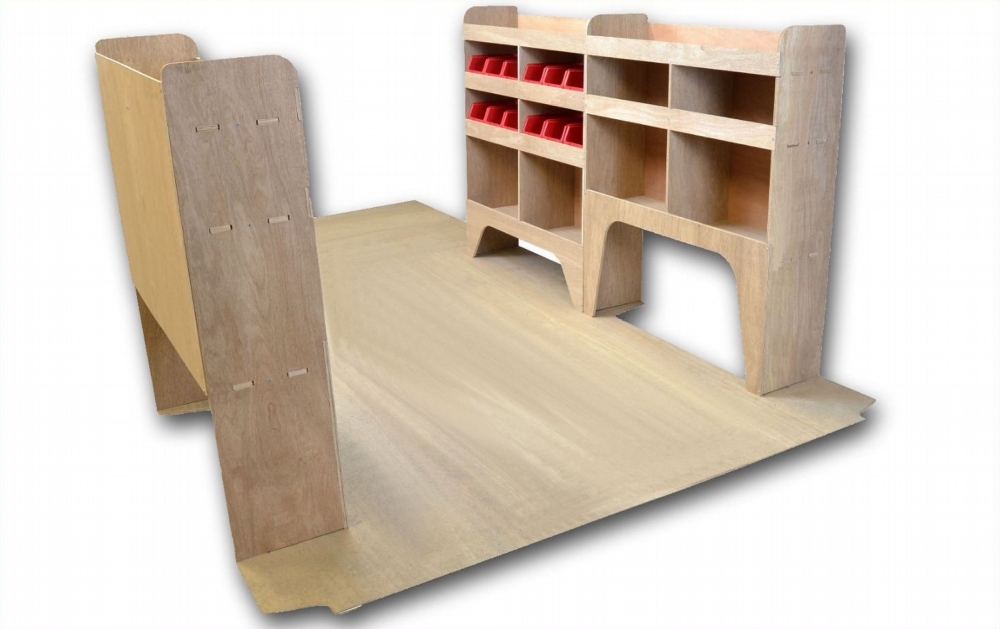

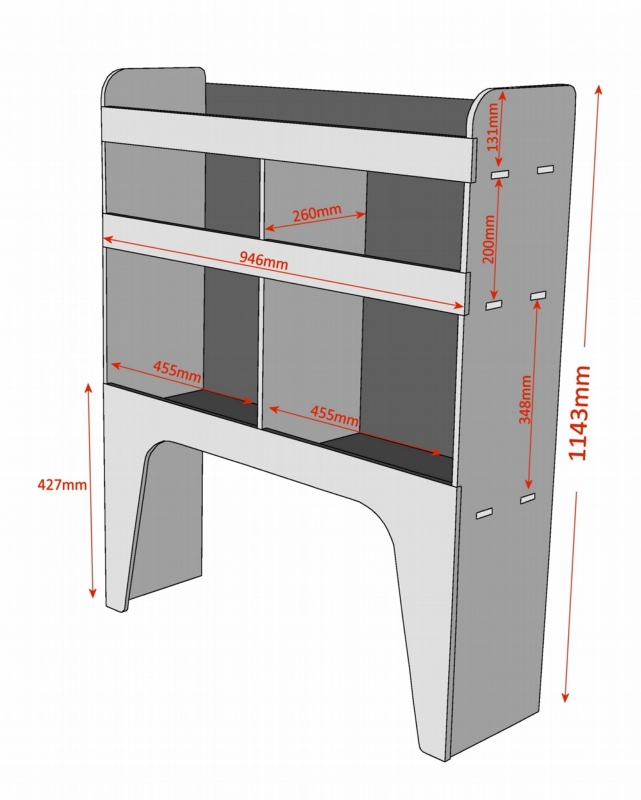

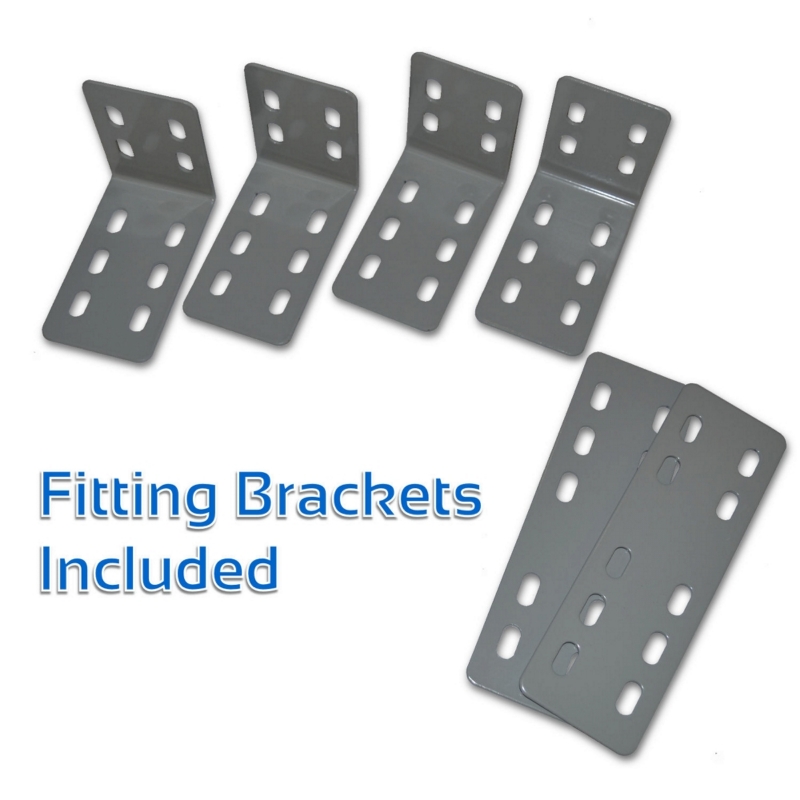

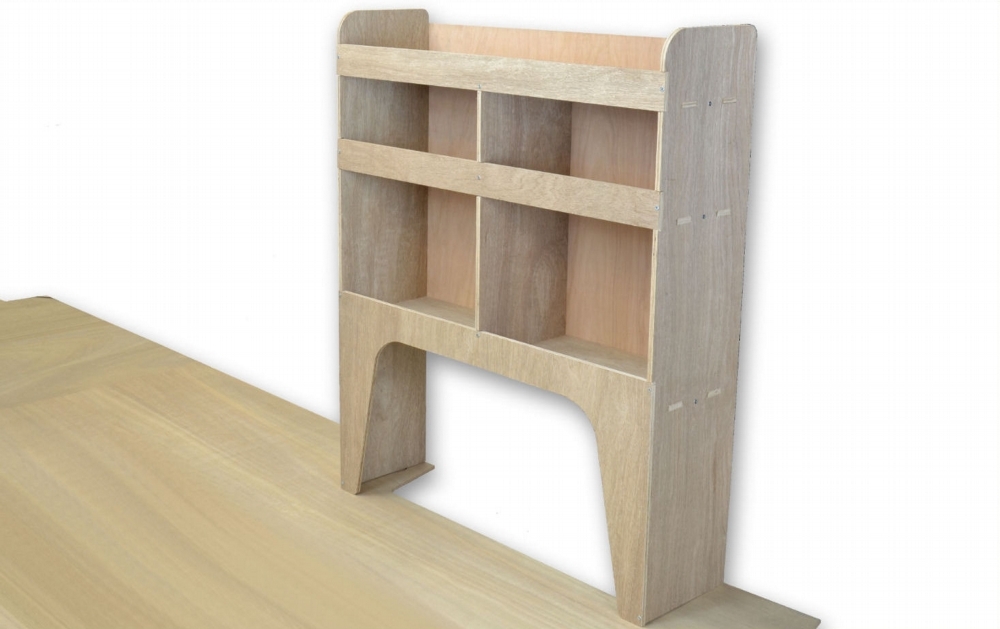

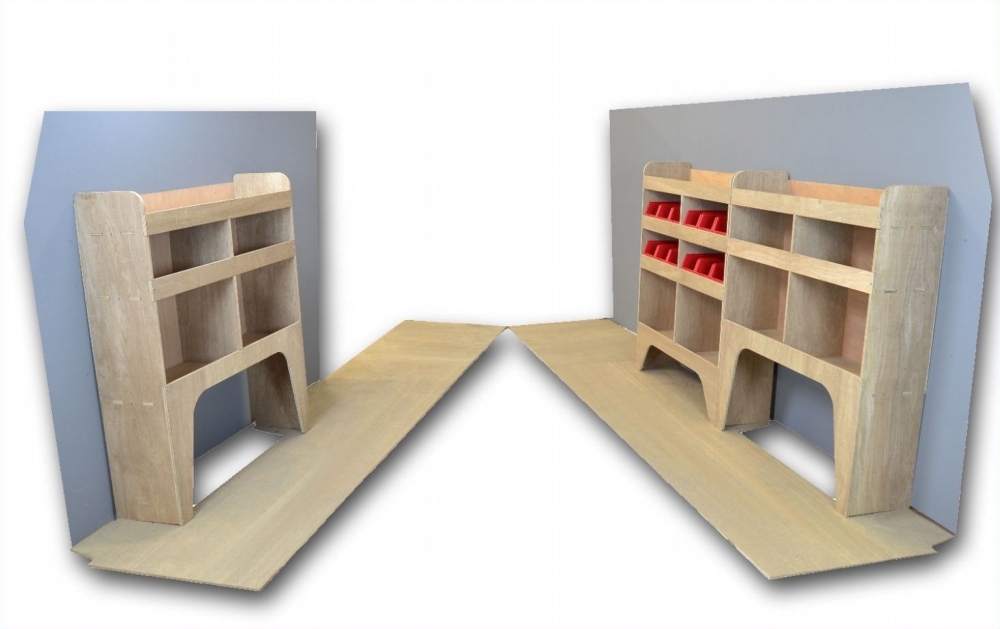

Ford Transit Plywood Van Racking - Shelving Package - WRK1.1.4 SKU: WRK1.1.4 transit Brand: £299.00 Add to Basket Ford Transit Plywood Van Shelving / Racking Package CNC Cut Mortise and tenon joints Universal design 12mm Ply Free Delivery Includes Fixing Brackets No dispatch on Friday,Saturday or Sunday Be the first to write a review Share this on Facebook Share this on Twitter Share this on Google Plus Share this on Pinterest Specification Delivery Video VAN PLYWOOD SHELVING UNIT Universal Van Racking system. COMPLETE VAN STORAGE SOLUTION PLYWOOD SHELVING UNITS This universal combination has been designed to work on the drivers side and near side of panel vans Three separate units are supplied, two of which can be positioned along the driver side of most panel vans, one can be used on the passenger side of the van. The 2 units (a WR1 and a WR4)can be screwed together to form one large unit, The combined size of both the units will be overall length 1892mm long with a height of 1143mm and a depth of 272mm. The other WR1 unit can be fitted to the passenger side of the van. The dimensions of each unit is as follows. RACK WR1 - Unit has height of 1143mm x 946mm wide and depth at the base of 272mm, comprises of 3 shelves, 2 of the shelves are divided into small pigeon hole compartments. Comes with back panel supplied so will work in vans even if they haven't been plylined. This is the unit that would normally sit over the wheel arch in you van. Shelf sizes are as follows starting from the top: Shelf 1 ( Top ) - 946mm wide x 131mm deep Shelf 2 - 946mm wide x 260mm deep x 200mm high (with central divider) Shelf 3 - 946mm wide x 260mm deep x 348mm high (with central divider) Clearance from floor to underside of bottom shelf 427mm high RACK WR4 - Unit has height of 1143mm x 946mm wide and depth at the base of 272mm, comprises of 4 shelves, 3 of the shelves are divided into small pigeon hole compartments. Comes with back panel supplied so will work in vans even if they haven't been plylined. This WR4 unit does include the 12 reds linbins. Shelf sizes are as follows starting from the top: Shelf 1 ( Top ) - 946mm wide x 260mm deep Shelf 2 - 946mm wide x 260mm deep x 200mm high Shelf 3 - As per shelf 2 Shelf 4 - 946mm wide x 260mm deep x 365mm high Clearance from floor to underside of bottom shelf 197mm high. This unit does not go over the wheel arch. CNC cut with Interlocking shelves and mortise and tenon joints throughout for maximum strength and rigidity, constructed from 12mm ply. Retaining lip to all compartments, much less rattles than steel shelving when on the move. These units are supplies flat packed will full assembly instructions and due to mortise and tenon joint design they only take 15 minutes to assemble. Please note timber is a natural product so the plywood colour may vary from the image, colour may vary between different boards. FREE DELIVERY for all orders over £30 UK MAINLAND delivery only, excluding AB, HS, IV, KA, KW, PA, PH, ZE, BT and IM post codes. Certain products can be shipped to these locations, but a surcharge will apply. Please phone to enquire.01684 578651 Demar UK carry large stocks of most products, and we aim to ship all orders placed as soon as possible.No dispatch on Friday,Saturday or Sunday. The carrier we use will depend on the size of the package, we book the delivery out on a next day service.
