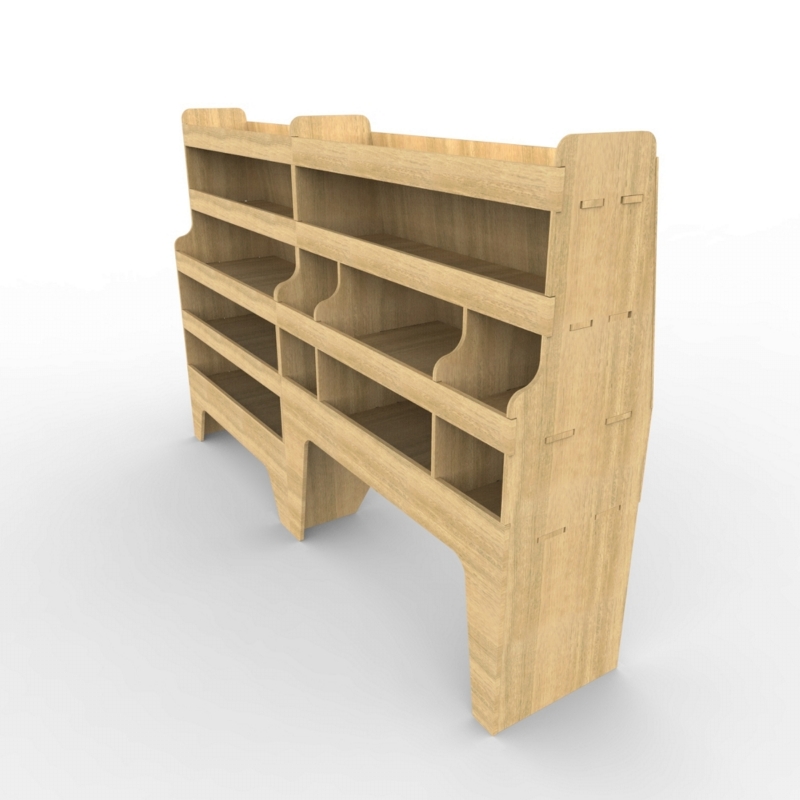

VAN PLYWOOD SHELVING PACKAGE
Designed to fit the offside of Transporter vehicles only

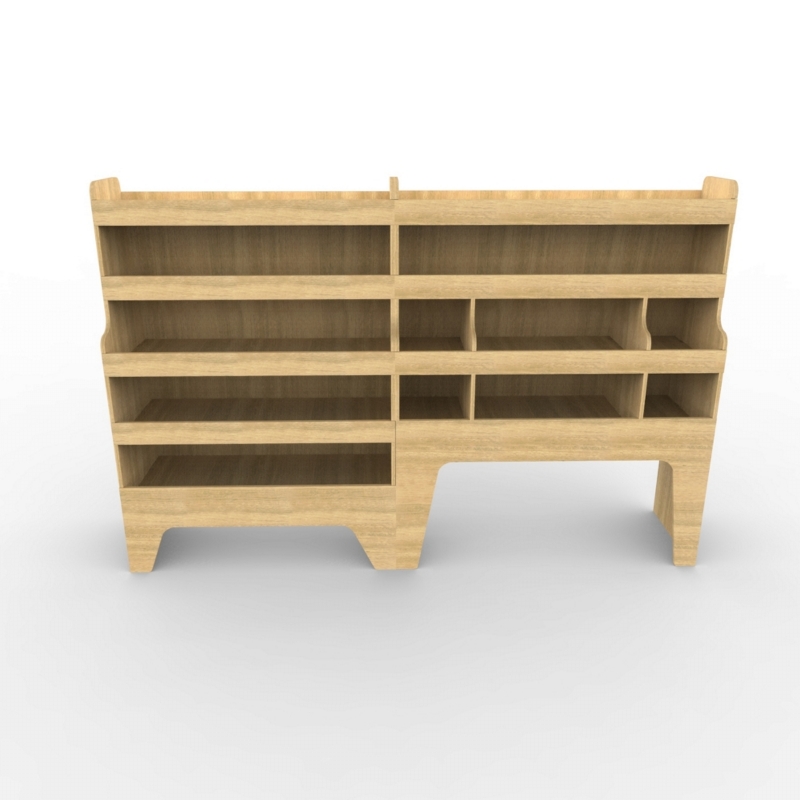

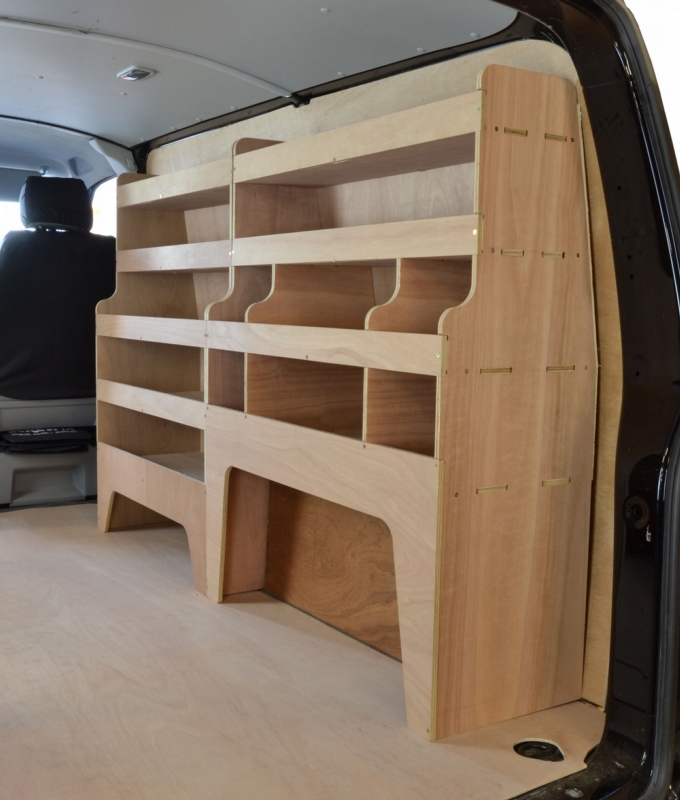

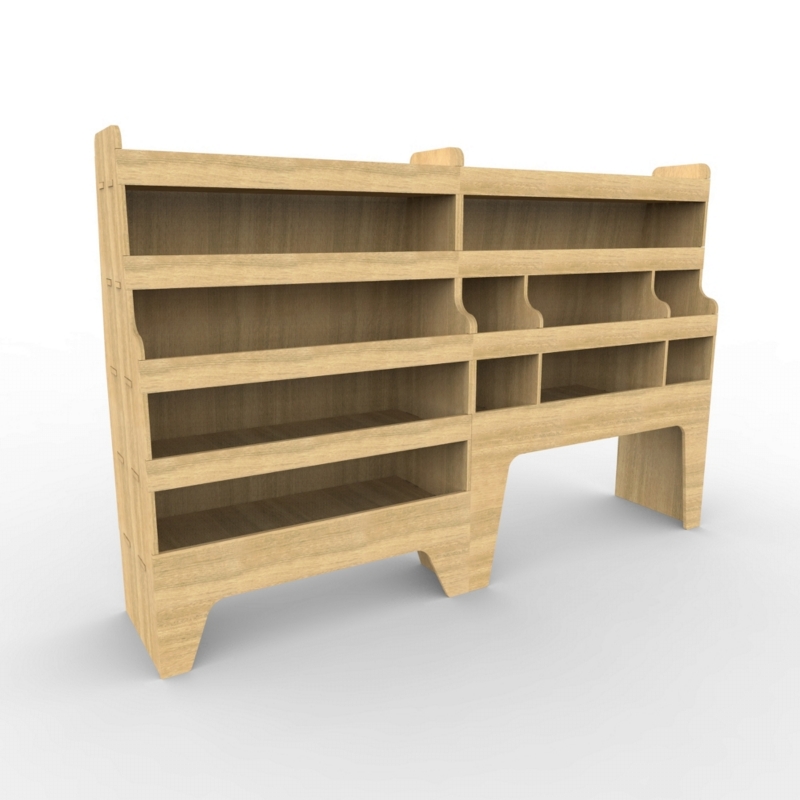

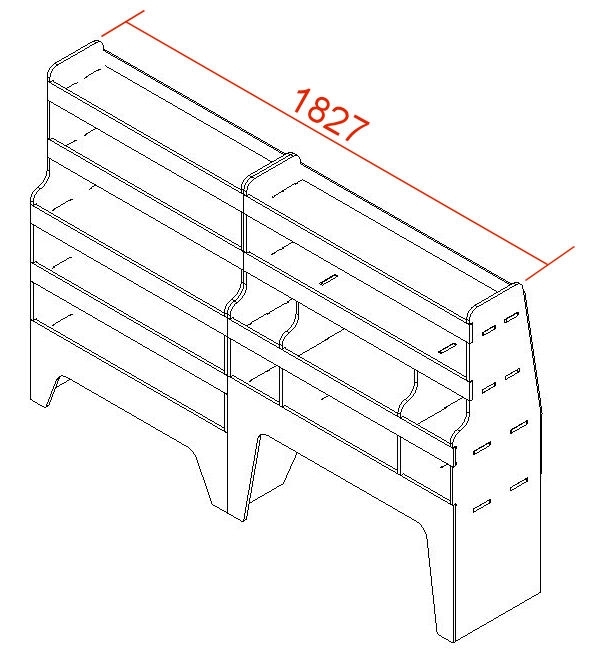

Two separate units are supplied which can be positioned along the driver side of most panel vans, the 2 units can be screwed together to form one large unit, The combined size of both the units will be overall 1827mm long.

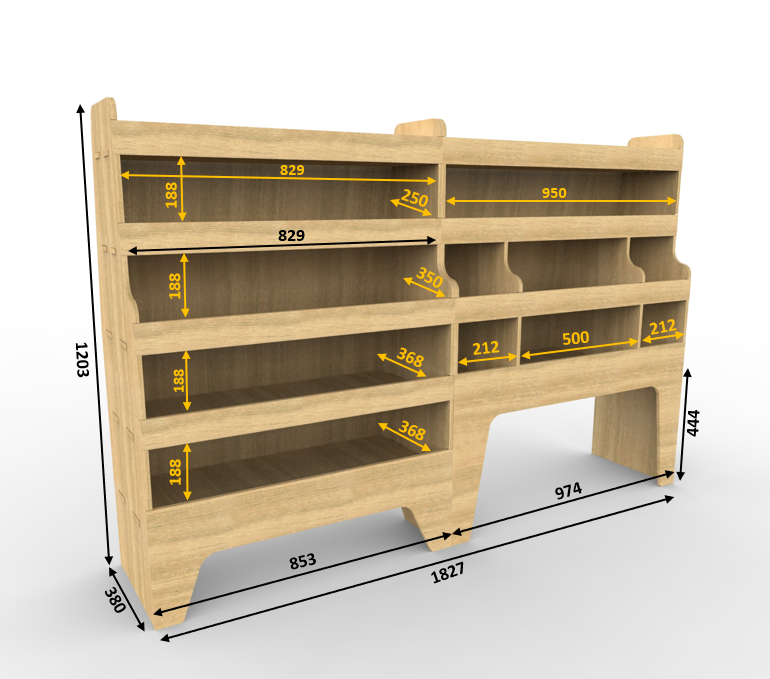

The dimensions of each unit is as follows.

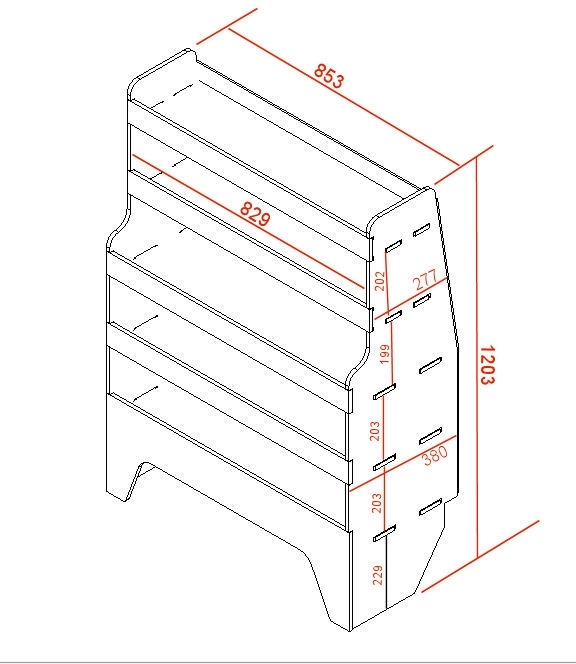

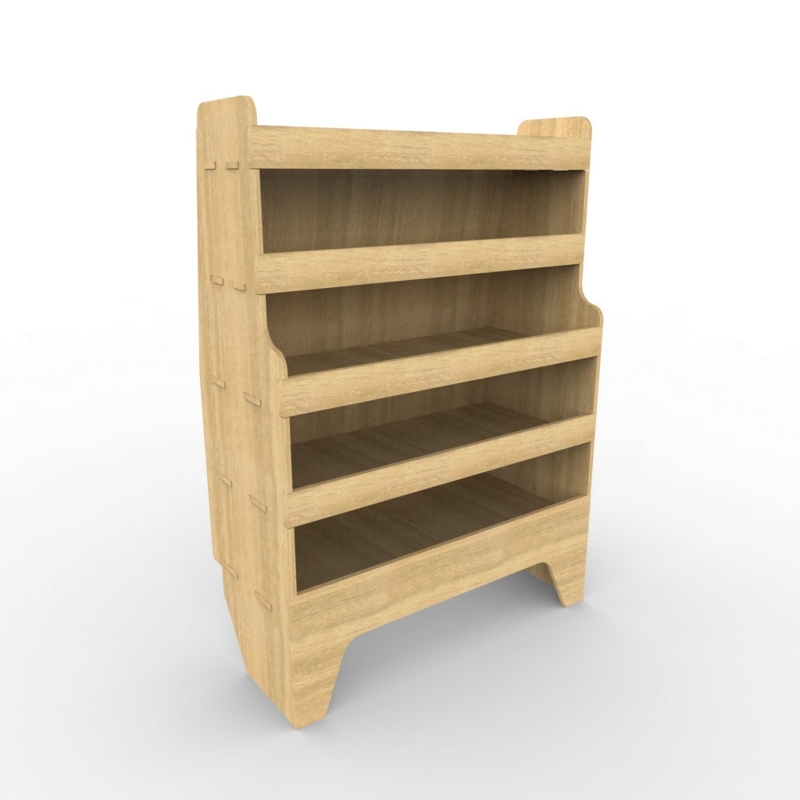

RACK WR33 - Unit has height of 1203mm x 853mm wide and depth at the base of 380mm, comprises of 5 shelves. Comes with back panel supplied so will work in vans even if they haven't been ply lined.
CNC cut with Interlocking shelves and mortise and tenon joints throughout for maximum strength and rigidity, constructed from 12mm ply. Retaining lip to all compartments, much less rattles than steel shelving when on the move.

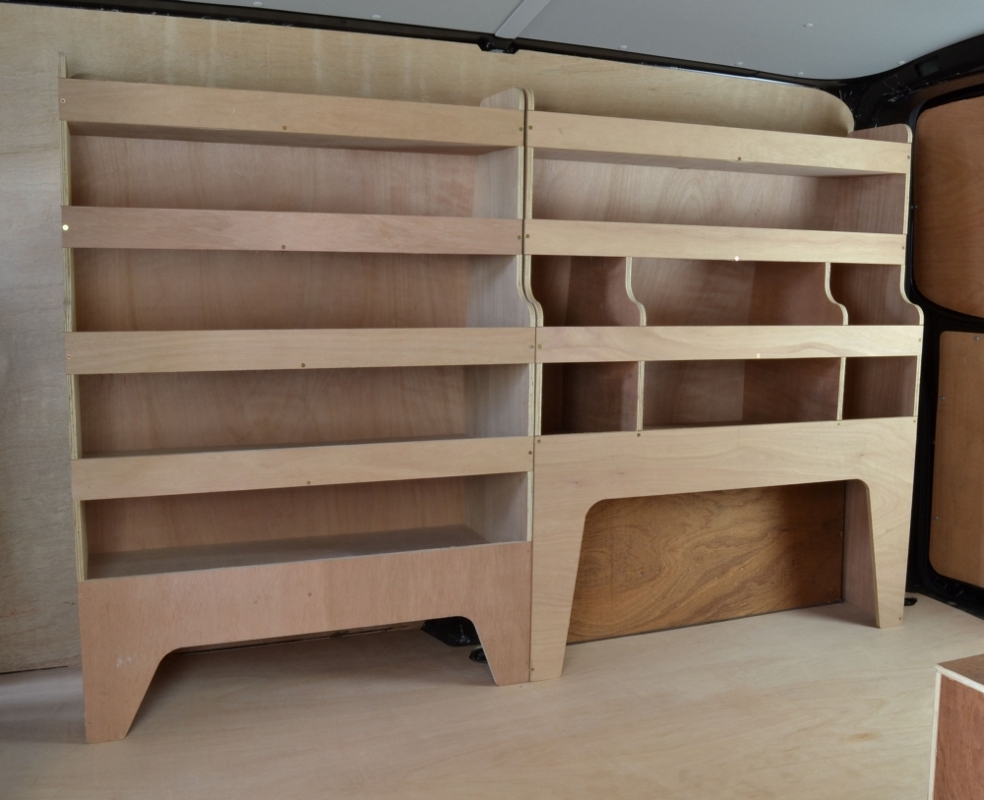

These units are supplies flat packed will full assembly instructions and due to mortise and tenon joint design they only take 15 minutes to assemble. These are intended to be fitted on the drivers side of the van
Shelf sizes are as follows starting from the top:
- Shelf 1 ( Top ) - 829mm wide x 245mm deep
- Shelf 2 - 829mm wide x 250mm deep x 200mm high
- Shelf 3 - 829mm wide x 380mm deep x 200mm high
- Shelf 4 - 829mm wide x 380mm deep x 200mm high
- Shelf 5 - 829mm wide x 380mm deep x 200mm high
- Clearance from floor to underside of bottom shelf 229mm high.

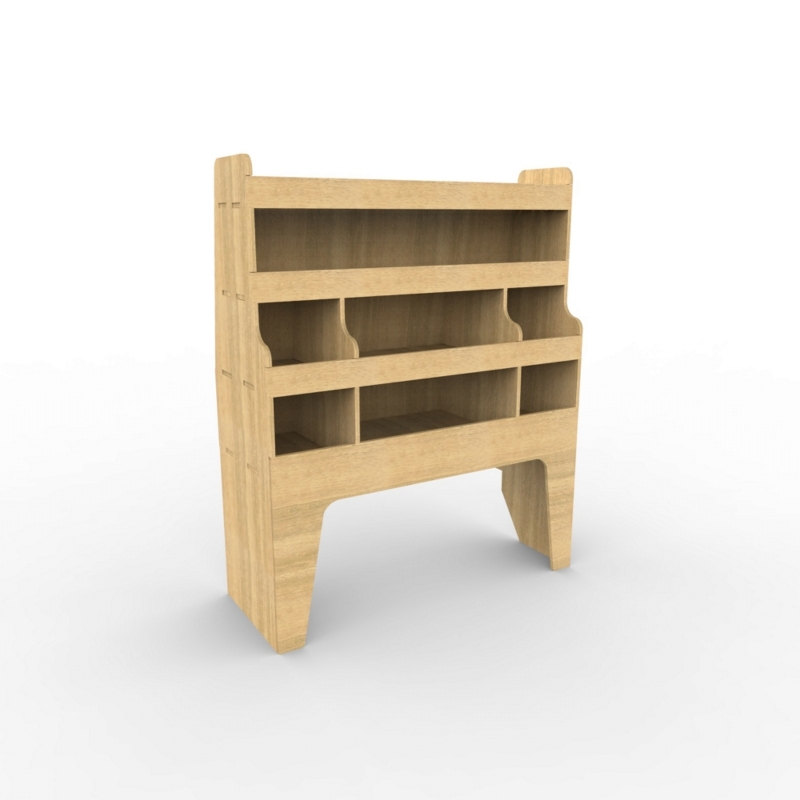

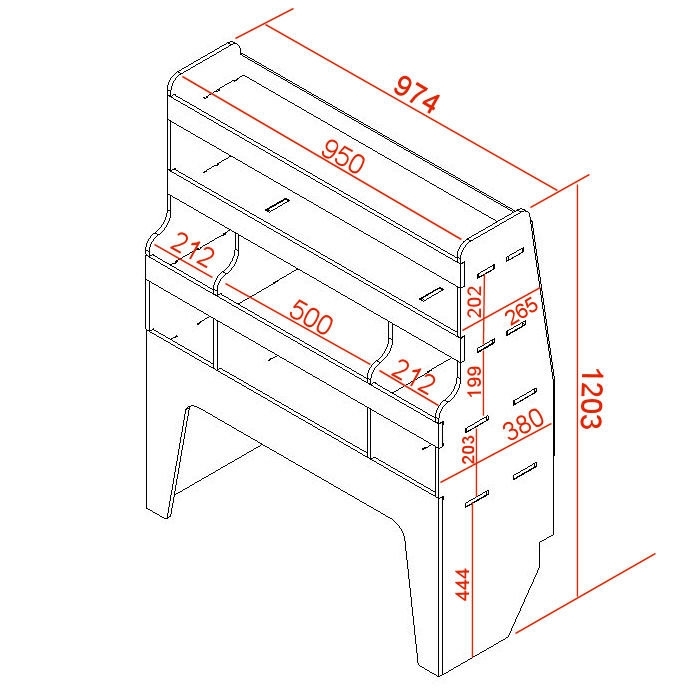

RACK WR35 - Unit has height of 1203mm x 974mm wide and depth at the base of 370mm, comprises of 4 shelves, 2 of the shelves are divided into small pigeon hole compartments. Comes with back panel supplied so will work in vans even if they haven't been plylined.
CNC cut with Interlocking shelves and mortise and tenon joints throughout for maximum strength and rigidity, constructed from 12mm ply. Retaining lip to all compartments, much less rattles than steel shelving when on the move.
These units are supplies flat packed will full assembly instructions and due to mortise and tenon joint design they only take 15 minutes to assemble. They can be assembled to fit on the drivers side of the van.
Shelf sizes are as follows starting from the top:
- Shelf 1 - 950mm wide x 231mm deep
- Shelf 2 - 950mm wide x 265mm deep x 202mm high
- Shelf 3 - 950mm wide x 370mm deep 199mm high, Middle compartment 500mm wide. Remaining compartments 212mm wide.
- Shelf 4 - As per shelf 3
- Clearance from floor to underside of bottom shelf 444mm high
